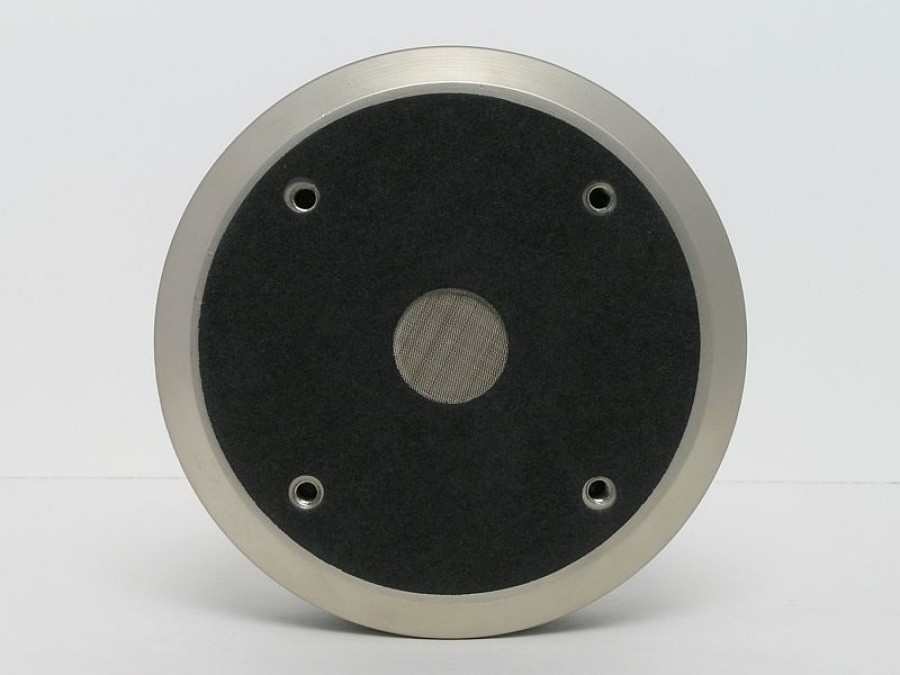

Denovo Audio BA-750 Compression Driver

The Denovo Audio BA-750 compression driver is an unusual compression driver to say the least.  While testing this model with different diaphragms, one audio forum member designated it the Big A** compression driver, and the name stuck.  And at over twice the size and weight of the DNA-360 and virtually all other 1" drivers......it holds that title well.  Very few 1" high frequency drivers can handle a crossover point around 700hz.  But with it's 2" voice coil and high power handling, the BA can.

Product Highlights:

• 8 ohms
• Specially coated titanium diaphragm for smoother sound with less listener fatigue.
• SPL: 110db 1w/1m
• Frequency Response:  700hz-19.5khz
• 140 watt power handling with proper crossover.
• Recommended crossover of 750Hz or above.
• Can handle a 700hz crossover in the SEOS-18 or larger waveguide with proper design.

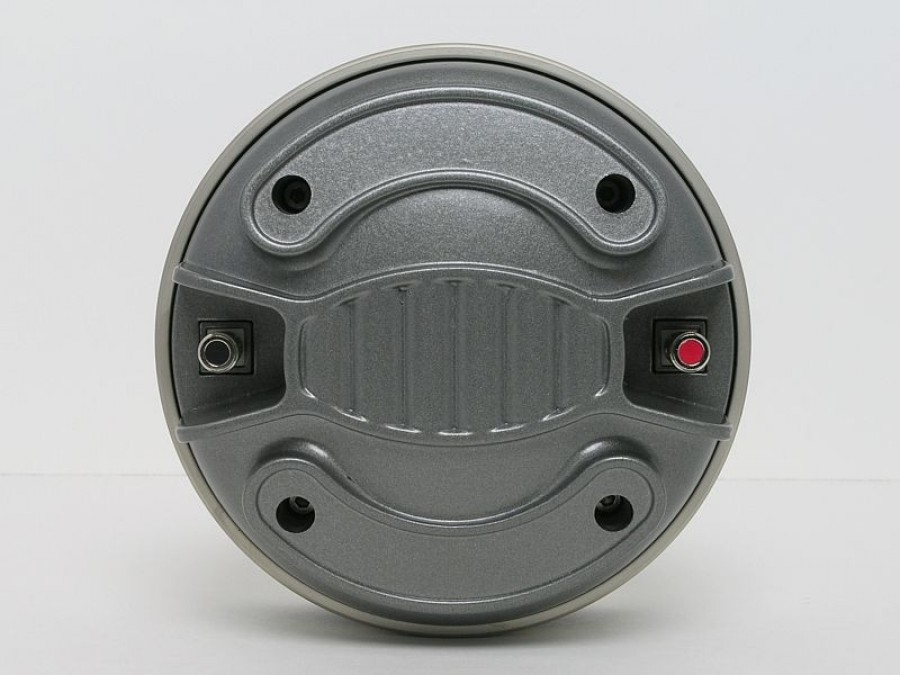

• The red and black terminals properly mark polarity.
• Gold plated terminals to resist corrosion.
• Ferrite magnet

• 2" voice coil
• Standard bolt on mounting for 4 bolt flanges

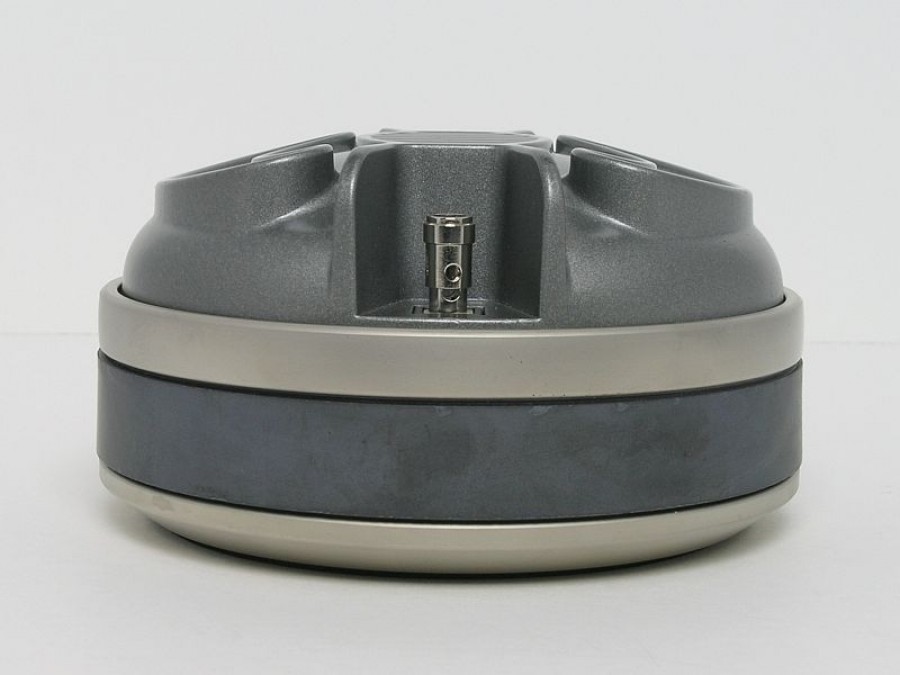

• 5.75" diameter and 3.25" deep
• Weight: 10lbs

Product Note: This model is intended for larger horns or waveguides.  The extra weight of the BA-750 compression driver may require you to strengthen the mounting flanges on whatever horn you use.  You will probably be okay, but it should be mentioned.
